Kubota 05 Series (CI)
- D1005-E4 (3000rpm)
- |
- D1105-E4
- |
- D1105-T-E3
- |
- D1305-E4
- |
- V1505-E4
- |
- V1505-T-E3
- |
- V1505-CR-TE5
- |
The essential appeal of Kubota engines lies in their ability to address a wide scope of uses, while rising to the stiffest of challenges. Simply stated, the true charisma of Kubota engines, which are at the global cutting edge for small-size industrial diesel engines, comes from the sophisticated combination of high power density, onboard interchangeability, and multi-fuel drive. Adding to this their ability to satisfy multiple emissions standards in both developing and industrialized nations, Kubota engines offer solutions to the difficult issues faced by customers representing diversified uses and regions. With various specs positioned for both in-house mounting and external sales on the strength of models responding to the inevitably wide variety of market needs, Kubota fields a lineup that dramatically expands customer options. Series are supplied across six different models, ranging in displacement from a minimum of 479 cc to a maximum of 6,100 cc (in-house mounting only), and in output from 4.1 to 157.3 kilowatts. Besides examples of in-house mounting on tractors, combines, generators and other products, there are also extensive examples of mounting when it comes to other brands as well. That long list begins with their mainstay agricultural machinery, while going on to include backhoes, aerial work platforms, skid-steer loaders, dampers, utility vehicles, riding lawn mowers, sweepers, wood chippers, power generators, refrigeration equipment, forklifts, telehandlers, power generators for motor homes, mobile floodlights, scissor lifts and numerous other uses.
Key Features
- Ranging from 479 cc to 6,100 cc
- Outputs range from 4.1 to 157.3 kilowatts
- Can be mounted to all brands
About Kubota 05 Series (CI)
Diesel (CI)
05 Series
D1005-E4 (3000rpm)
Emissions
The D1005 engine complies with EPA / CARB Tier 4 emissions regulations.
Durable Power
The Kubota 05 Series is an established leader in its horsepower range, selected as the power source of choice by various industrial equipment manufacturers. The D1005 offers a seamless transition from E3 to E4 by maintaining the same footprint and hardware mounting points.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide low particulate matter (PM) levels, matching the stringent level of emission regulation.
Options
A variety of Kubota diesel (CI) engines accessory options are also available.
This model comes with full EU Stage V emission certification.
Length x Width x Height (without aftertreatment unit)
480 x 396 x 605 mm (18.9 x 15.6 x 23.8 in)
Dry weight
93 kg
Rated output / speed
17.5kW (23.5HP) / 3000 rpm

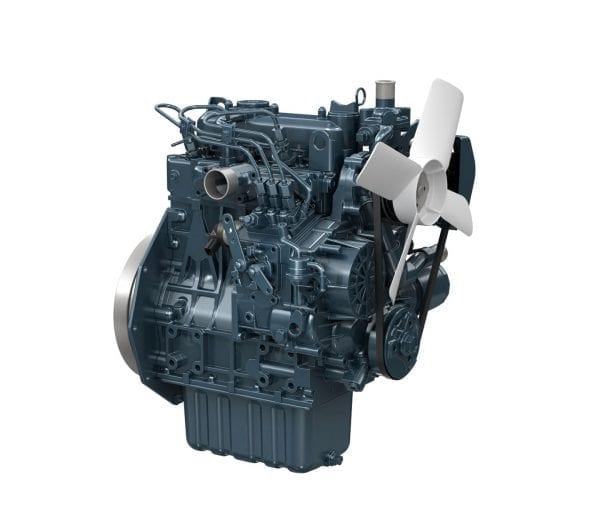

D1105-E4
Emissions
The D1105 engine of the Kubota diesel (CI) engines series complies with EPA / CARB Tier 4 emissions regulations.
Durable Power
The Kubota 05 Series (CI) is an established leader in its horsepower range, selected as the power source of choice by various industrial equipment manufacturers.
The D1105 is a leading model among 05 series in the Kubota diesel (CI) engines range and is used for various applications.
The D1105 offers a seamless transition from EPA Tier 2 to EPA Tier 4 by maintaining the same footprint and hardware mounting points.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The combustion chamber and piston recess have been optimized to achieve lower particulate matter (PM) levels.
This model comes with full EU Stage V emission certification.
Length x Width x Height (without aftertreatment unit)
480 x 396 x 605 mm (18.9 x 15.6 x 23.8 in)
Dry weight
93 kg
Rated output / speed
18.5kW (24.8HP) / 3000 rpm

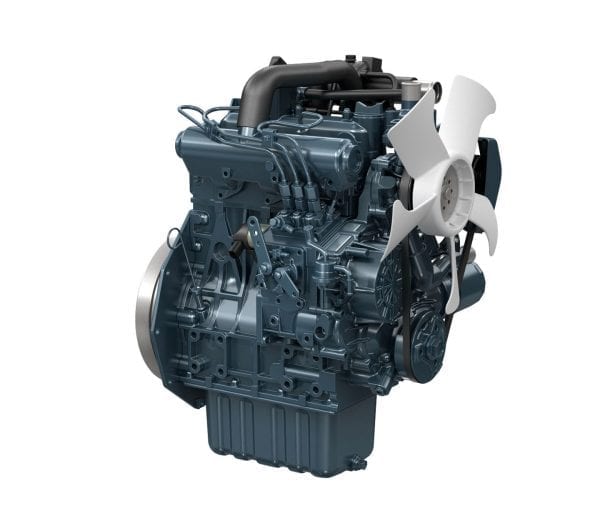

D1105-T-E3
Emissions
The D1105 Turbocharged Kubota diesel (CI) engines comply with the EPA / CARB interim Tier 4 + EU Stage IIIA emissions regulations.
Durable Power
The Kubota 05 Series (CI) range is an established leader in its horsepower range, selected as the power source of choice by various industrial equipment manufacturers.
The D1105 Turbocharged engine offers a seamless transition from EPA Tier 2 to EPA interim Tier 4 by maintaining the same footprint and hardware mounting points, with no performance changes from EPA Tier 2 engines.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide low particulate matter (PM) levels, matching the stringent level of the below 37 kW class.
Length x Width x Height (without aftertreatment unit)
480 x 433 x 629 mm (18.9 x 17.0 x 24.8 in)
Dry weight
97 kg
Rated output / speed
24.5kW (32.9HP) / 3000 rpm
D1305-E4
Emissions
The D1305 series of the Kubota 05 Series (CI) range complies with EPA Tier 4 emissions regulations.
Durable Power
The Kubota 05 Series is an established leader, selected as the power source of choice by various industrial equipment manufacturers. The D1305 engine is a high power density engine that delivers the highest output within the Kubota 05 Series with a naturally aspirated 3-cylinder configuration. D1305 delivers a smooth transition from E3 to E4.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide low particulate matter (PM) levels, matching the stringent level of the 37 kW class and higher (EPA Interim Tier 4 Option 1). The half-float valve cover and MoS2-coated pistons reduce noise levels and decrease vibrations transmitted from the valve area.
Options
A variety of Kubota diesel (CI) engines accessory options for the existing Kubota 05 Series are also available for this engine.
This model comes with full EU Stage V emission certification.
Length x Width x Height (without aftertreatment unit)
480 x 396 x 590 mm (18.9 x 15.6 x 23.2 in)
Dry weight
95 kg
Rated output / speed
18.5kW (24.8HP) / 2600 rpm
V1505-E4
Emissions
The V1505 engine of the Kubota diesel (CI) engines series complies with EPA / CARB Tier 4 emissions
Durable Power
The Kubota 05 Series is an established leader, selected as the power source of choice by various industrial equipment manufacturers. By reducing output, the V1505 engine realizes a smooth transition from E3 to E4.
Clean and Quiet Power
Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide low particulate matter (PM) levels, matching the stringent level of the emission regulation below 37 kW The half-float valve cover and MoS2-coated pistons reduce noise levels and decrease vibrations transmitted from the valve area.
This model comes with full EU Stage V emission certification.
Length x Width x Height (without aftertreatment unit)
565 x 396 x 607 mm (22.2 x 15.6 x 23.9 in)
Dry weight
110 kg
Rated output / speed
18.5 kW (24.8HP) / 2300 rpm
V1505-T-E3
Emissions
The V1505 Turbocharged engine of the Kubota diesel (CI) engines series complies with EPA / CARB interim Tier 4 + EU Stage IIIA emissions regulations.
Durable Power
The Kubota 05 Series is an established leader in its horsepower range, selected as the power source of choice by various industrial equipment manufacturers.
The V1505-T engine offers a seamless transition from EPA Tier 2 to EPA interim Tier 4 by maintaining the same footprint and hardware mounting points, with no performance changes from Tier 2 engines.
Clean and Quiet Power
The addition of a closed breather system meets EPA interim Tier 4 requirements.
Kubota’s original E-TVCS (Three Vortex Combustion System) has been improved. The airflow, combustion chamber, and piston recess have been optimized to provide low particulate matter (PM) levels, matching the stringent level of the 37 kW class and higher (EPA Interim Tier 4 Option 1).
Length x Width x Height (without aftertreatment unit)
565 x 433 x 621 mm (22.2 x 17.0 x 24.4 in)
Dry weight
114 kg
Rated output / speed
33.0kW (44.3HP) / 3000 rpm
V1505-CR-TE5
Emissions
The V1505-CR-TE5 has been designed to comply with EPA/CARB Tier4 + EU Stage V emissions regulations.
Compact and Lightweight
The Kubota 05 Series is an established leader in its horsepower range, selected as the power source of choice by various industrial equipment manufactures. Compact 4-cylinder engine offers 33.0kW.
Low Fuel Consumption
Best fuel efficiency is achieved with Common Rail System (CRS) and direct injection.
Great Versatility
Great versatility enabled with the evolved ECU specialized for industrial machineries.
Length x Width x Height (without aftertreatment unit)
758 x 474 x 691 mm (29.8 x 18.7 x 27.2 in)
Dry weight
173 kg
Rated output / speed
33.0kW (44.3HP) / 3000 rpm
